Detailed Product Description:
| TECHNICAL PARAMETER | ||||
| MODEL | FE90 | FE60 | FC80 | FC50 |
| Cutting height (after vacuum compression) | 90 | 60 | 80 | 50 |
| DOOR WIDTE (mm) | 1800/2000/2200 | |||
| Dimensions of the cutting tool (mm) | 2.4*8.5 | 2*7 | 2.4*8.5 | 2*7 |
| Maximum rotational speed (r/min) | 5000 | 3600 | ||
| Average power consumption (kW) | 12 | 10 | ||
| Vacuum pressure (Max.) Kpa | 23 | 21 | ||
| Dimensions of the cutting table ( mm) | L5180*(w3035.5/3238.5/3441.5)*H2554 | |||
| Voltage/Frequency v/Hz | 3P/N/PE, AC380V, 50/60HZ | |||
| Total power in kW | L5180*(w3035.5/3238.5/3441.5)*H2554 | |||
| Air flow rate (NL/min) | 160 | |||
| Compressed air - pressure in MPa | 0.7 | |||
| Compatible with CAD | CUTFILE/RS274D/PLAVPLX/IS06983 | |||
| The weight of the cutting bed kg | 3600~4200 | |||

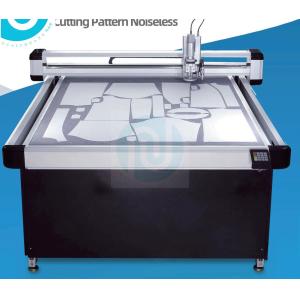

More picture for this part for your reference:
